the new System Fx
FritsJurgens®
Choose limitless possibilities for pivot door design
We wish for a world full of ideas. We push the limits to make your dreams come to life. We are passionate and innovative, and at the same time, we remain brave, authentic, and sincere. We believe technology can change the world and make it beautiful.
presenting the new
System
Fx
-
Hold positions 0°, 90° 180° an 270°
-
4 Strong hold positions
-
Designed for doors up to 209 kg

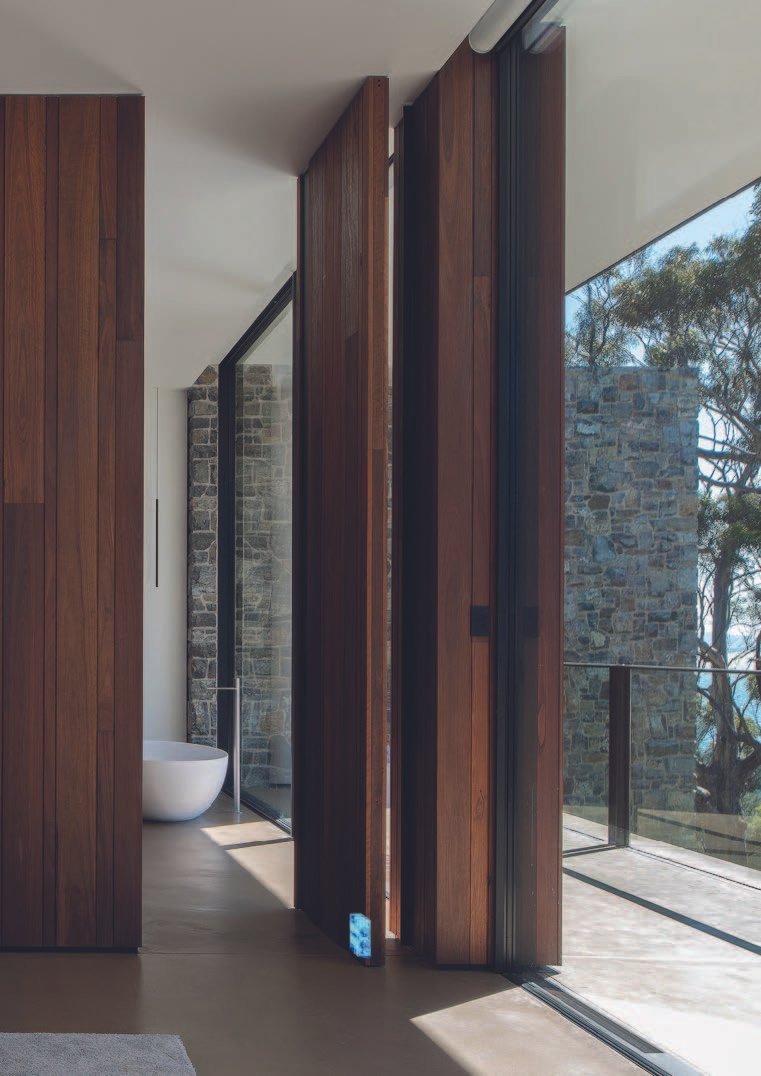

System M+
-
Double-acting doors
Rotation 180°
Hold positions 90°, -90° and 0°
Self-closing from 125° and -125° to 0°
-
Suitable for doors with latch
Rotation 90°
Hold positions 90° and 0°
Self-closing from 125° to 0°
-
Damper Contro
Latch Control
30° Speed Control
-
System M+ (32mm)
Class A: 20 - 119 kg
Class B: up to 159 kg
Class C: up to 209 kg
Class D: up to 279 kg
Class E: up to 349 kg
System M+ (42mm)
Class F: up to 429 kg
Class G: up to 500 kg
System M
-
Rotation 180°
Hold positions 90°, -90° and 0°
Self-closing from 125° and -125° to 0°
-
Hold positions 90° and 0°
Self-closing from 125° to 0°
-
Hydraulic backcheck (opening damping)
for wall-protection, and soft-close.
-
System M (70mm)
System M (40mm)
Class AA: 20 - 79 kg
Class A: up to 119 kg
Class B: up to 159 kg
Class C: up to 209 kg
System One
-
Rotation 360°
-
Rotation 90°
-
360° free-swinging pivot
-
System One (70mm)
System One (40mm),
Class G: 0 - 500 kg
System 3
-
Rotation 360°
Hold positions 0°, 90°, 180°, 270°
-
Below each 45° angle, the door automatically moves from both directions to the hold position.
-
Class AA: 20 - 79 kg
Class C: up to 249 kg
Class E: up to 349 kg
Class G: up to 350 kg
TOP PIVOTS
40mm
-
Fixed pivot point at 40 mm
Maximum clear width, minimal unused space
Pivot door is minimally present in open position
Ideal for situations with standard door widths
-
Top pivot class B (10 mm pin):
For System M and System M+ (classes AA, A and B)
Top pivot class G (15 mm pin):
For System M, System M+ (classes C,D, E, F, G) and for System One (class G)

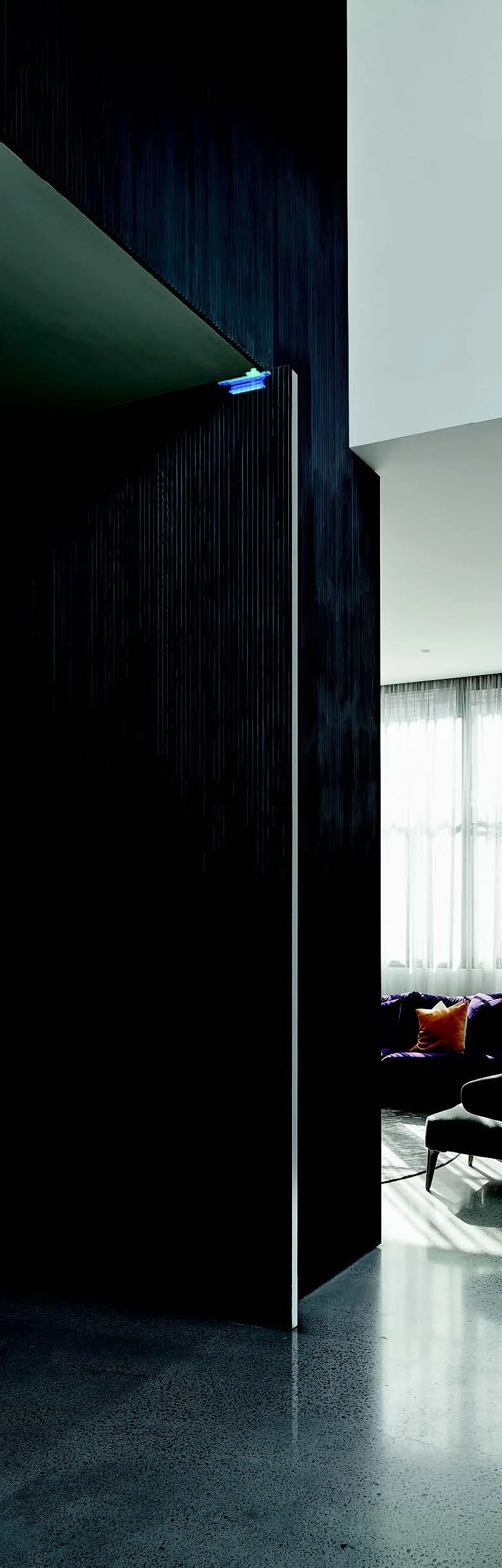

TOP PIVOT
70mm
-
Pivot point from 70 mm to middle placement
All-rounder: suitable for almost every pivot door and situation
-
Top pivot class B (10 mm pin):
For System M, System M+ and System 3 (classes AA, A and B)
Top pivot class G (15 mm pin):
For System M,System M+, System 3 (classes C, D, E, F, G) and System One
TOP PIVOTS
Cable Grommet
-
Pivot point from 91 mm to middle placement
-
Designed to easily lead cables through the top pivot
8 mm hole in the pin for cables

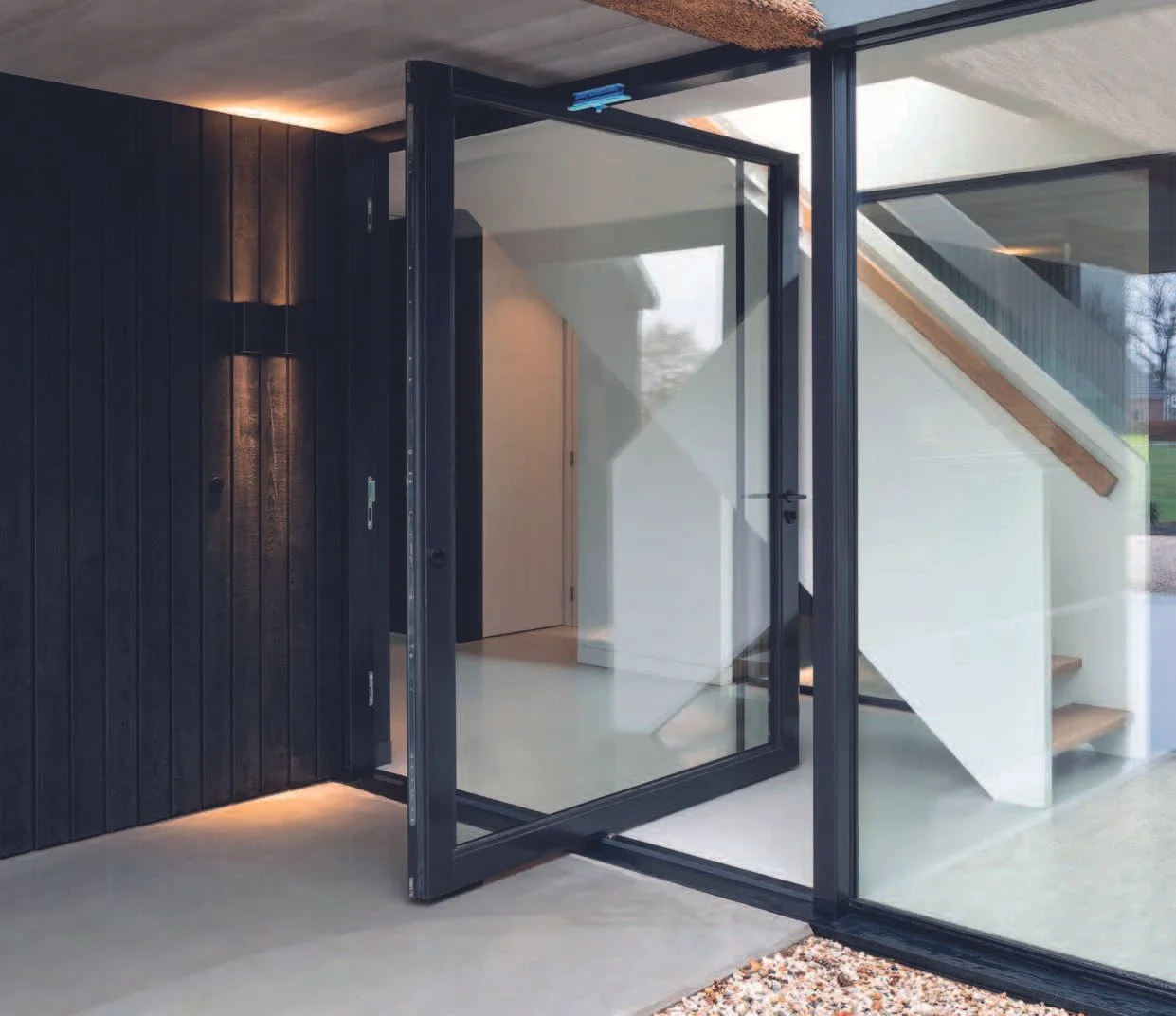

TOP PIVOT
Reversed
-
Pivot point from 130 mm to middle placement
-
Ideal for extra thin door frames and/or large glass openings
Installation in the top jamb
